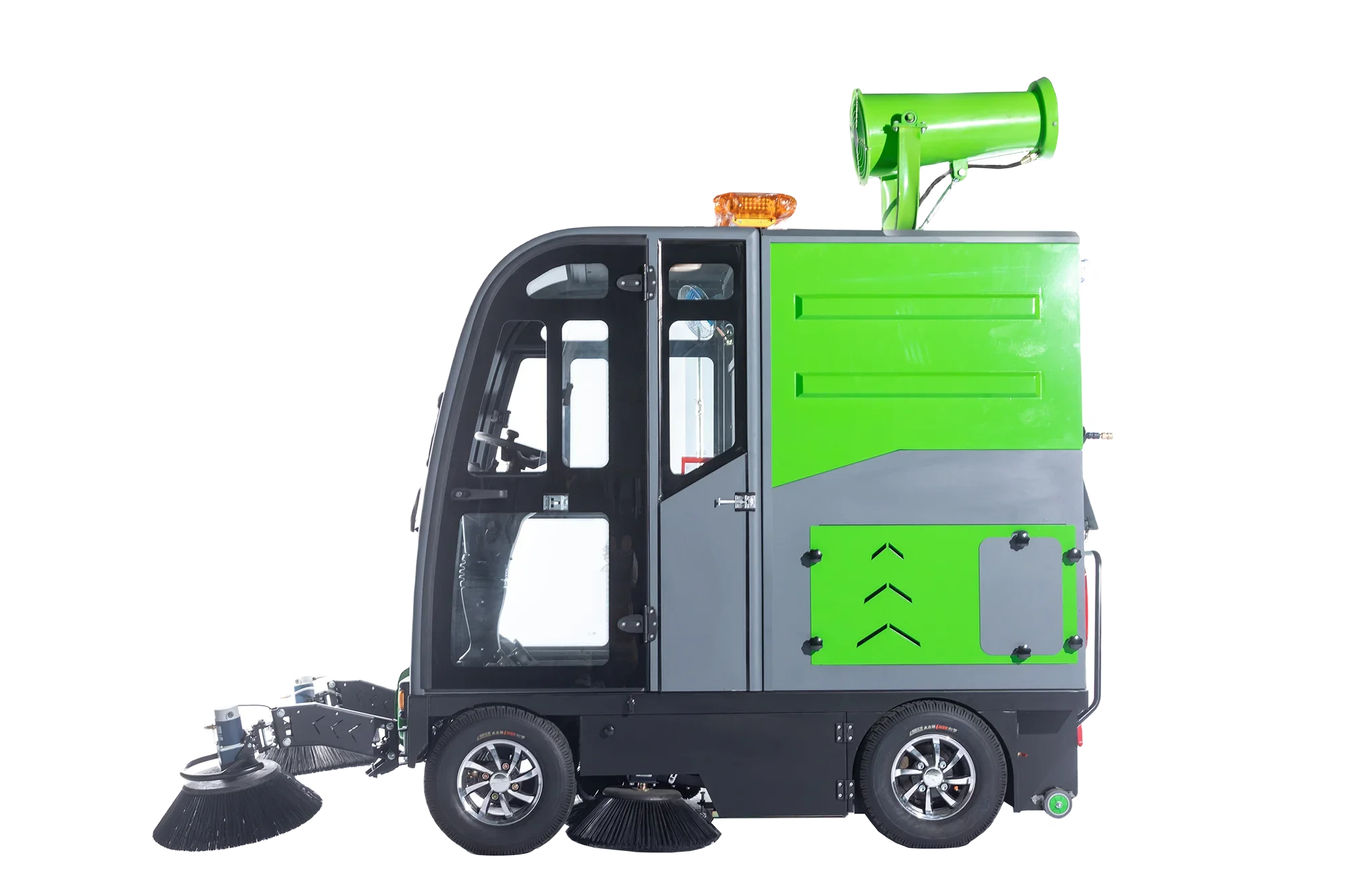

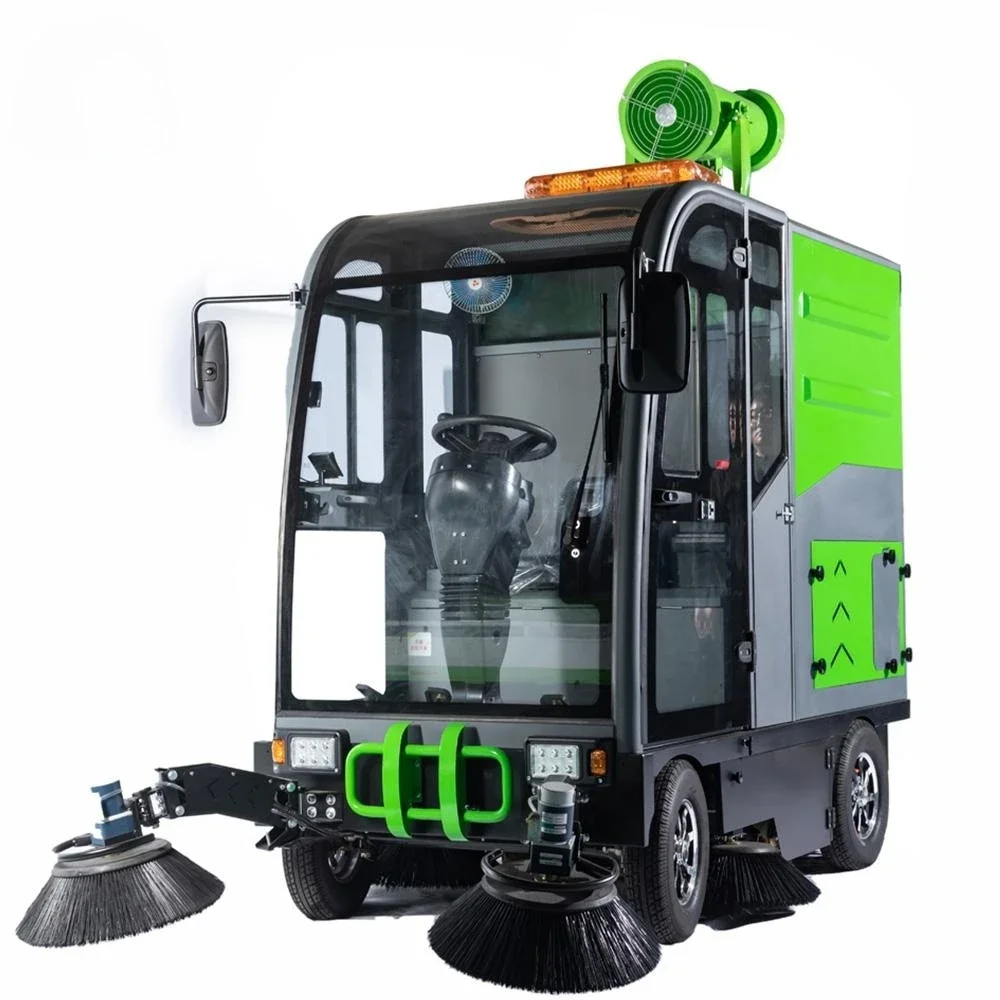

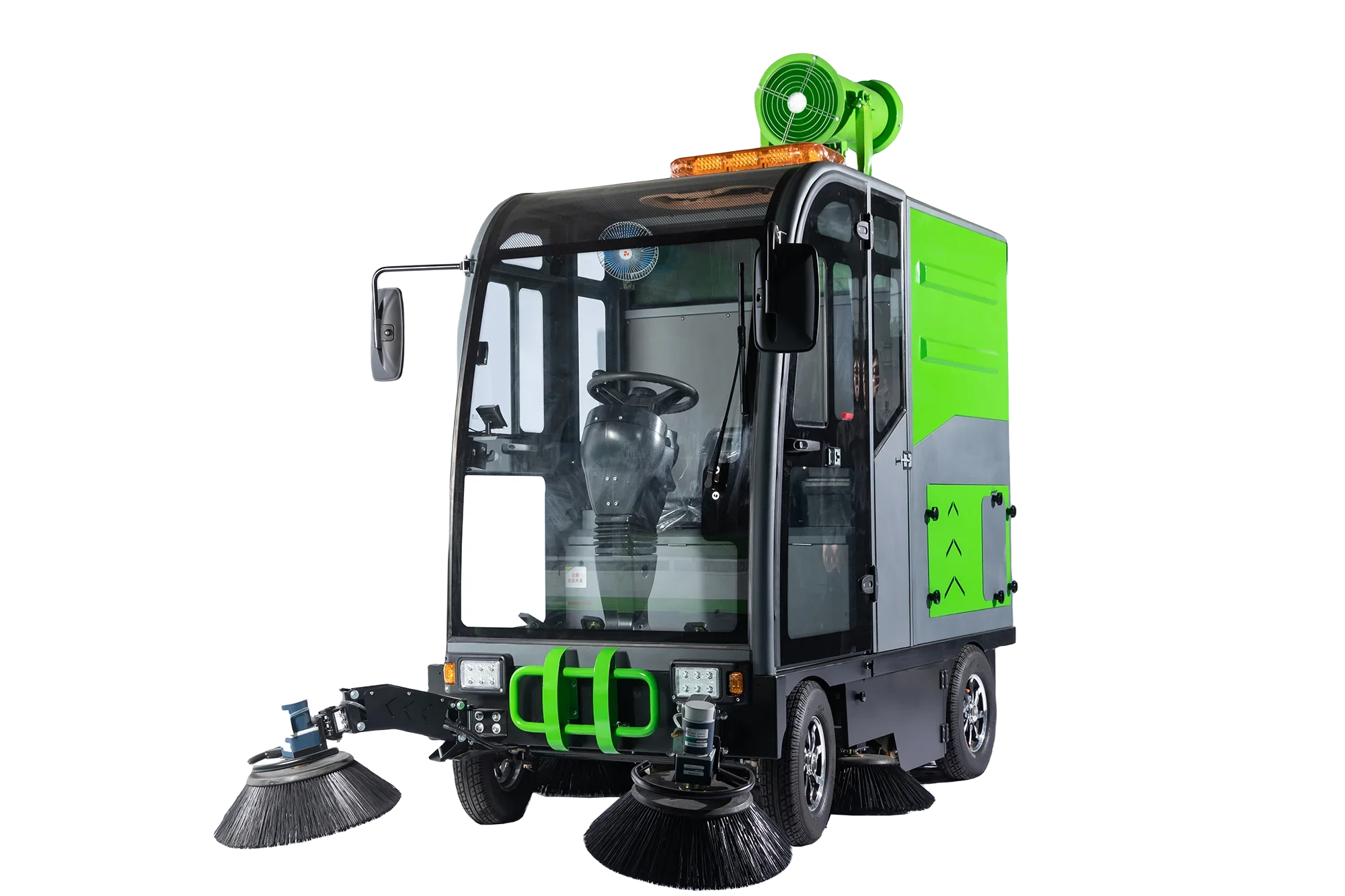

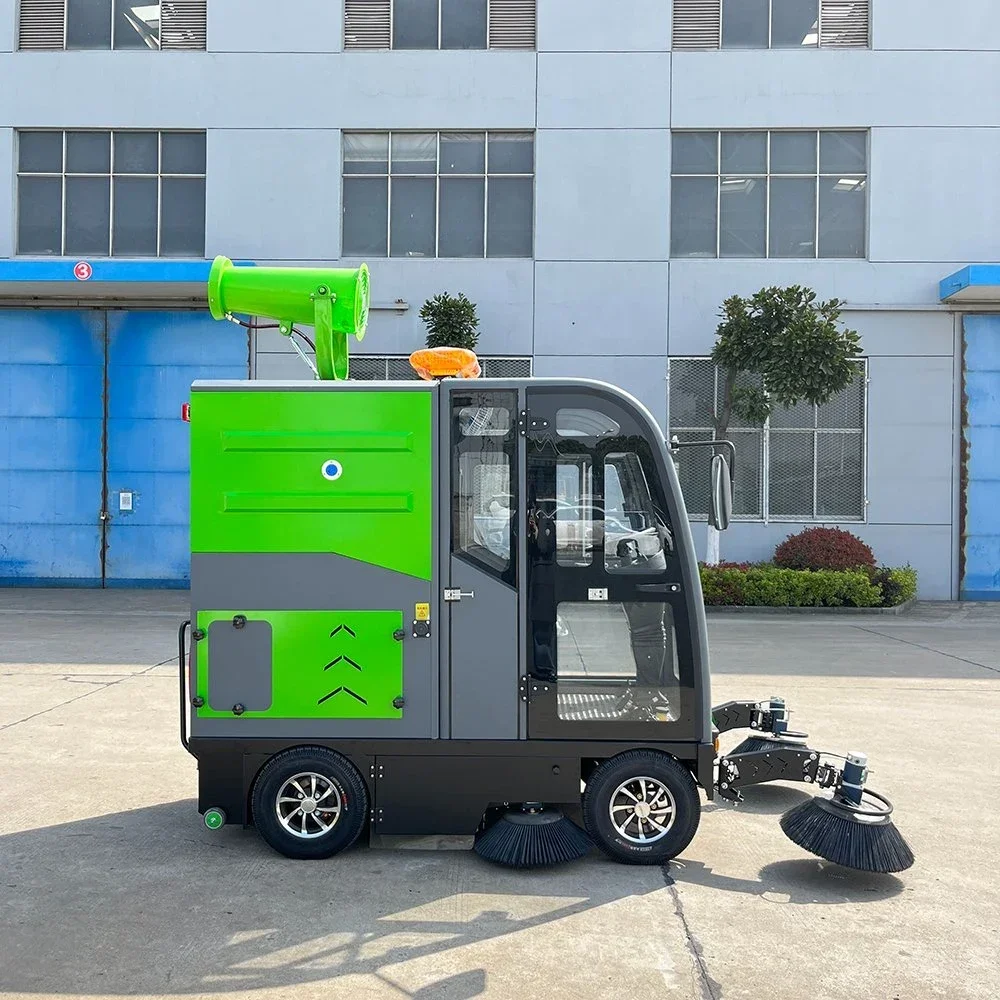

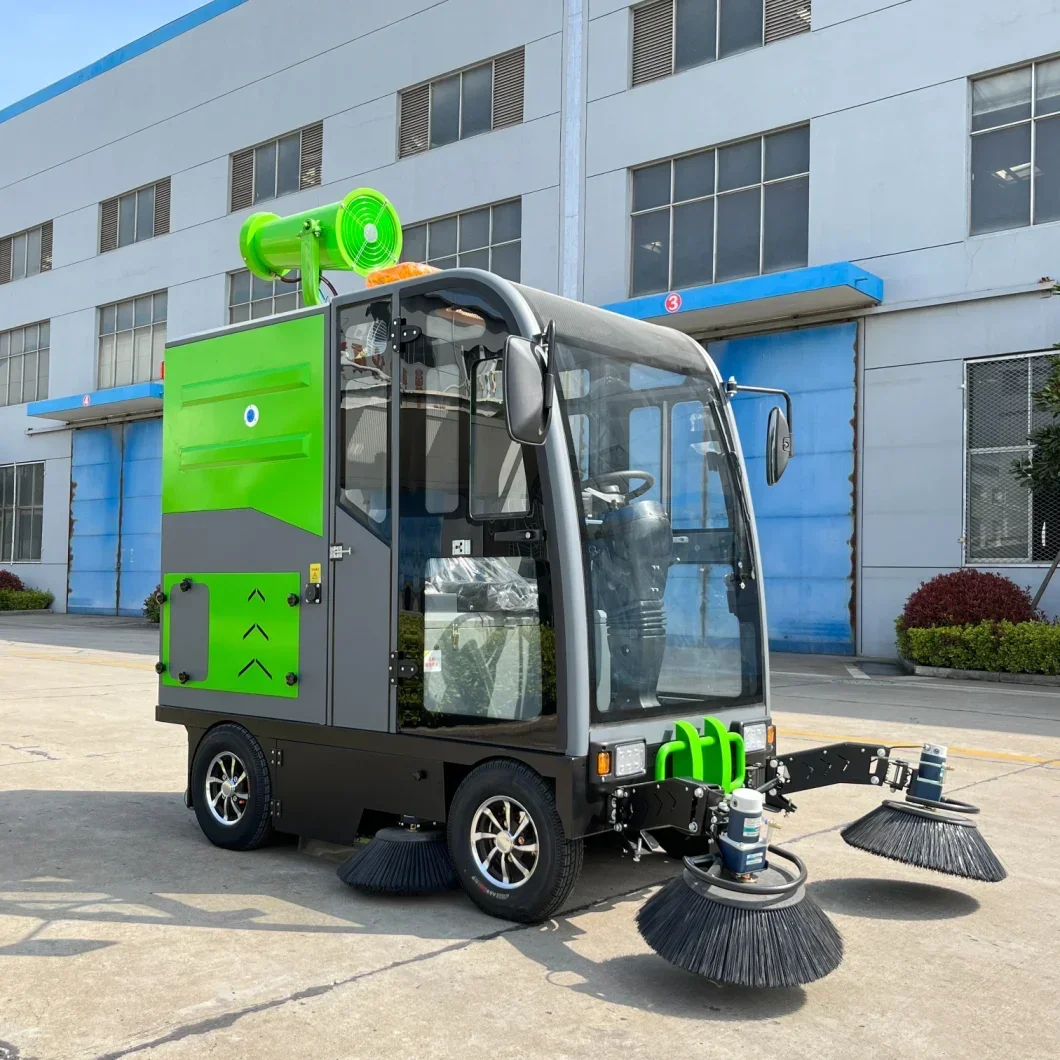

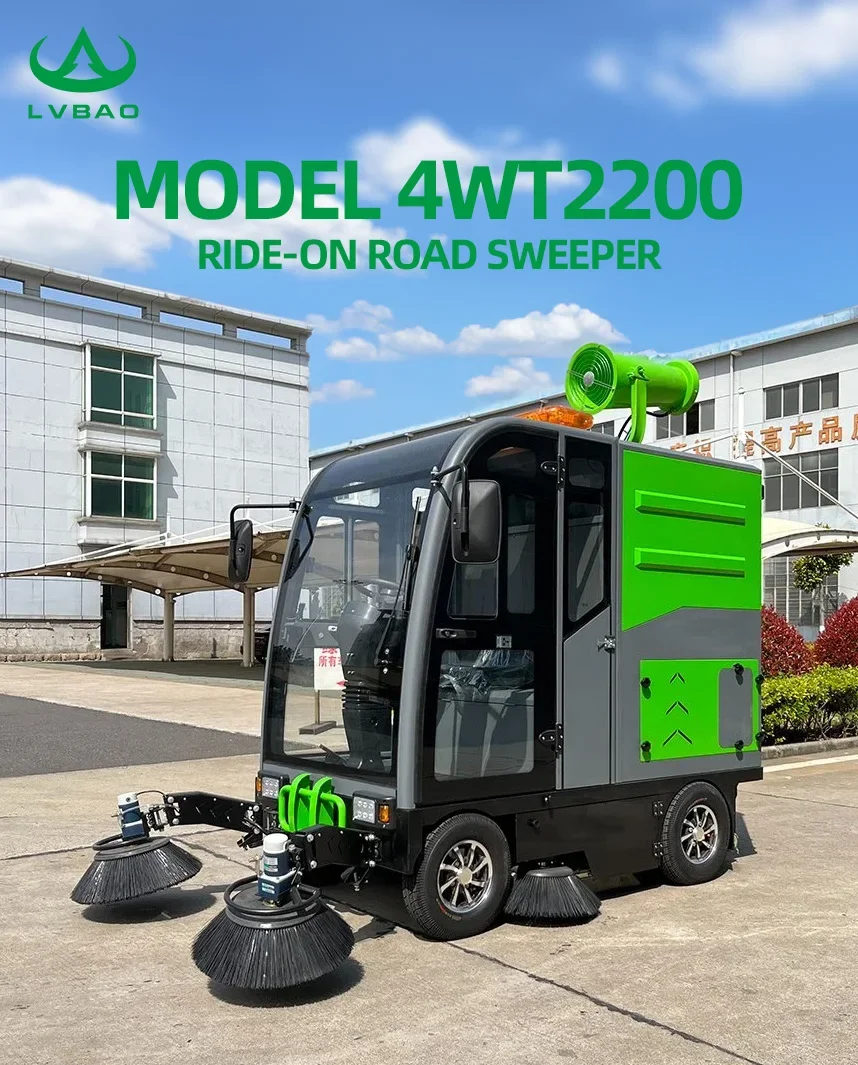

LB-4WT2200 Road Cleaning Machine Riding on Electric Industrial Street Sweeper
LB-4WT2200 Road Cleaning Machine Riding on Electric Industrial Street Sweeper
Regular price
$24,514.57 USD
Regular price
$24,514.57 USD
Sale price
$24,514.57 USD
Unit price
/
per
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Machine type: sweeper
Video ex-factory inspection: Can provide
Mechanical test report: Can provide
Core component warranty period: 1 year
Core components: PLC, motor
state: New
Origin: Jiangsu, China
brand: LVBAO
fuel: Electric
use: Floor Cleaning
Cleaning media: Cold water cleaning
Cleaning mode: On site cleaning
Applied to what material: plastic
Power (Watts): 2200
Dimensions (length x width x height): 2700*2100*2100mm
defects liability period: 1 year
Weight (KG): 1150 kg
type: Cycling
2100MM SWEEPING WIDTH
Sweeping diameter of 2100mm, sweeping a large area of the ground, efficient cleaning.

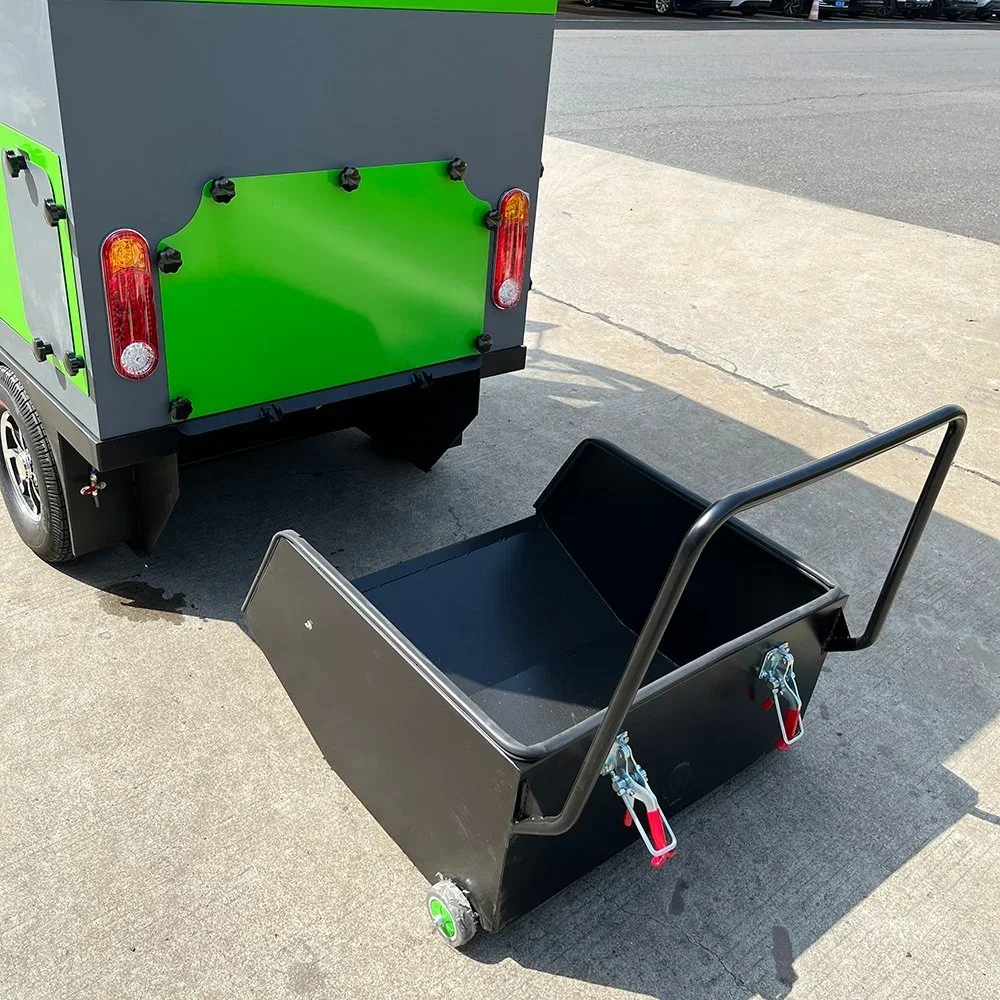

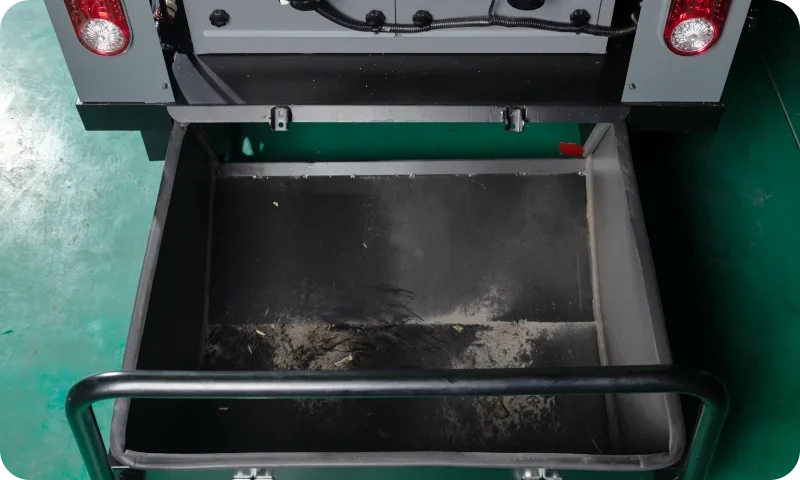

240L TRASH BIN
No need for frequent dumping, can operate for a long time, saving time and effort.

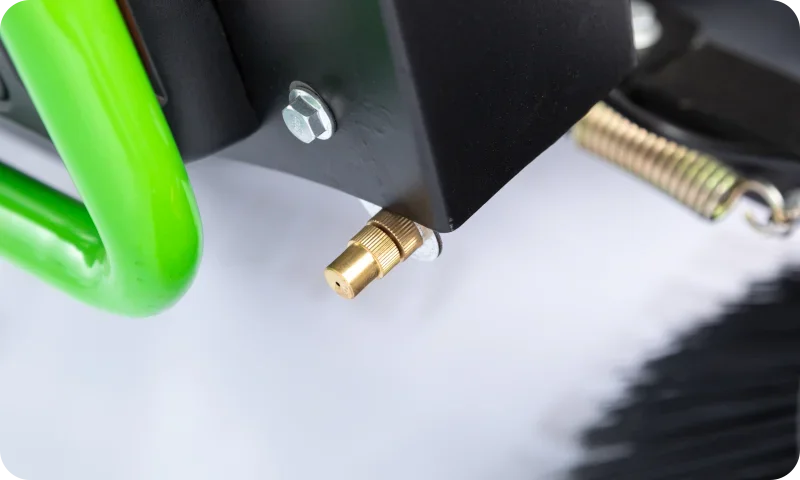

DUST REMOVAL SPRAY SYSTEM
Spray device design, effectively prevent dust flying, keep the air clean.

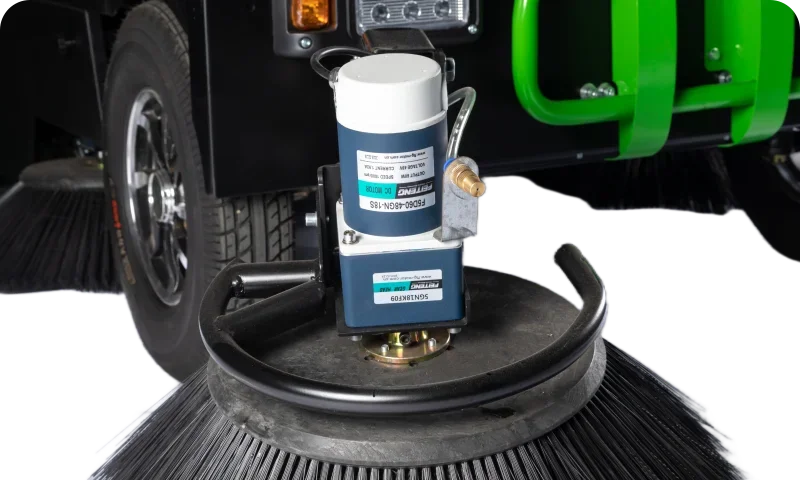

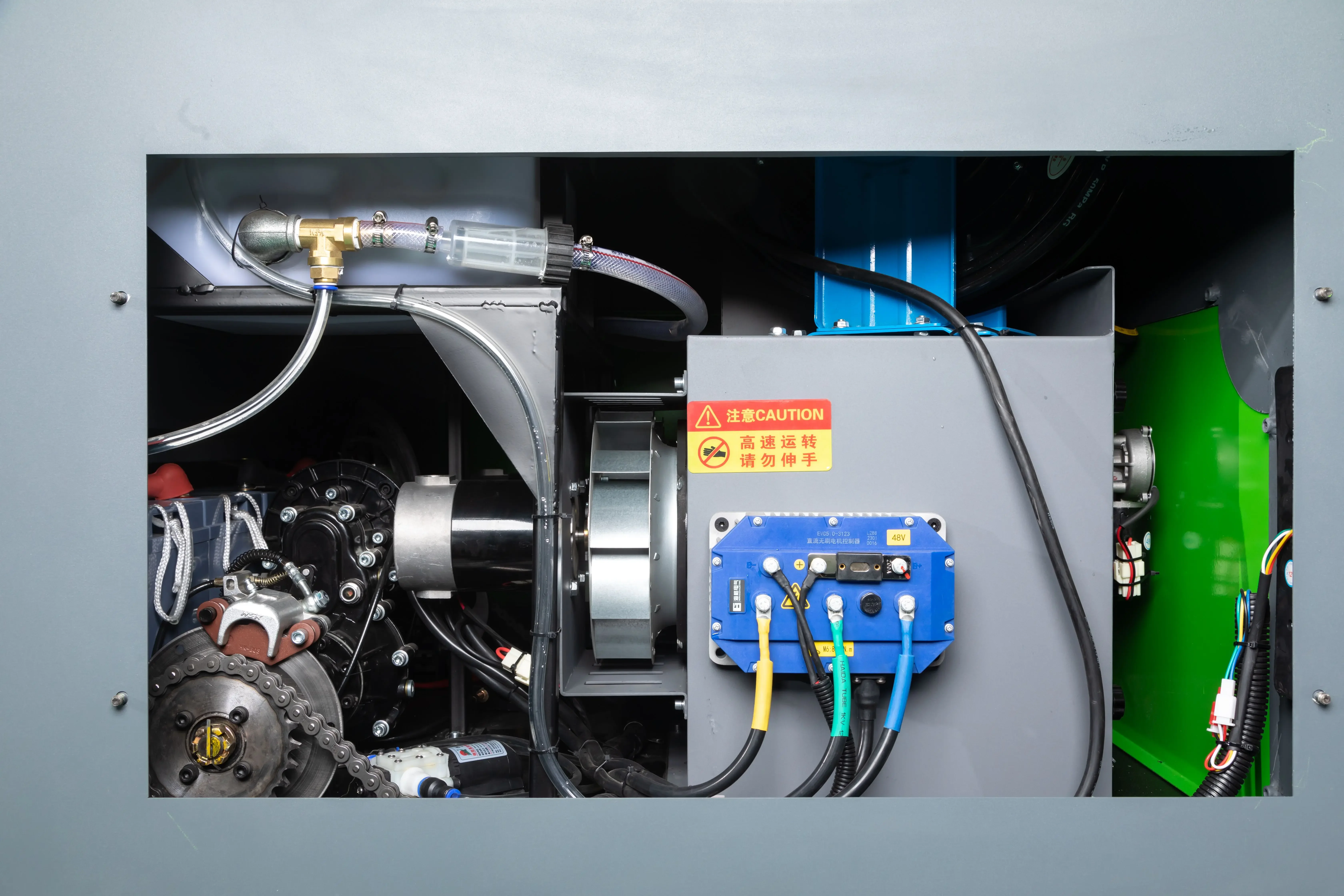

BRUSHLESS MOTOR
High-quality motors ensure long-term stable operation.

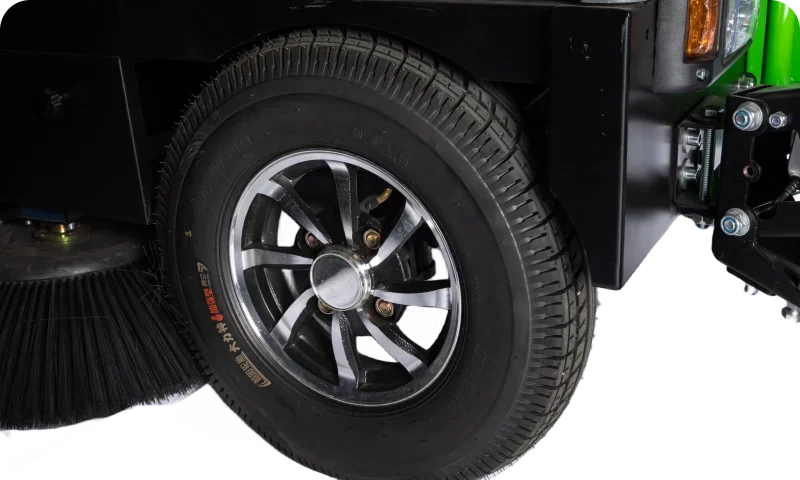

VACUUM TIRE
High-quality rubber material, excellent wear resistance, long service life.
150L WATER TANK
Large capacity water tank design, ensuring continuous water supply for long periods of work.

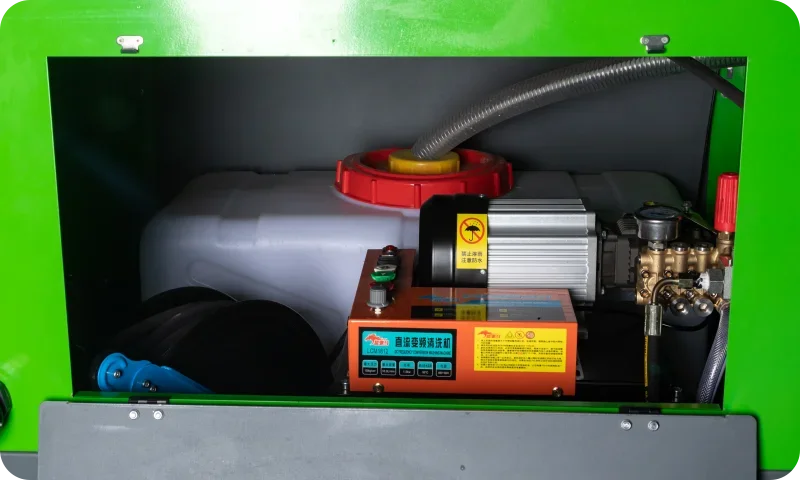

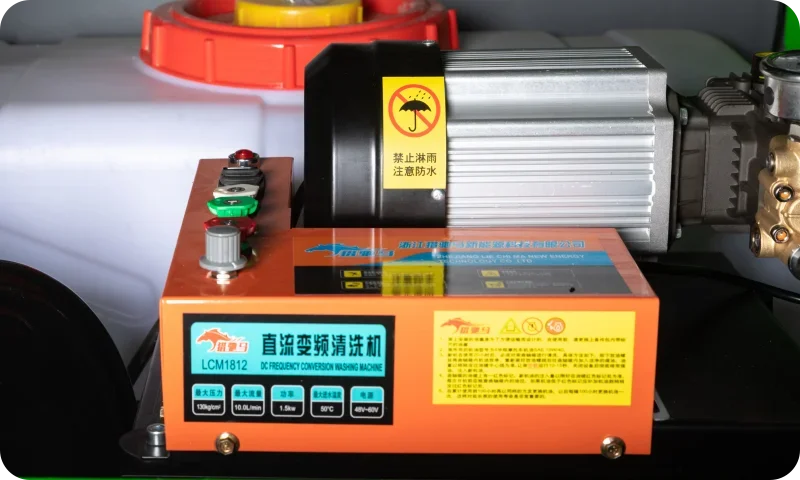

HIGH PRESSURE CLEANER
Built-in DC variable frequency high-pressure cleaning machine, convenient for cleaning stubborn stains, worry-free and labor-saving.

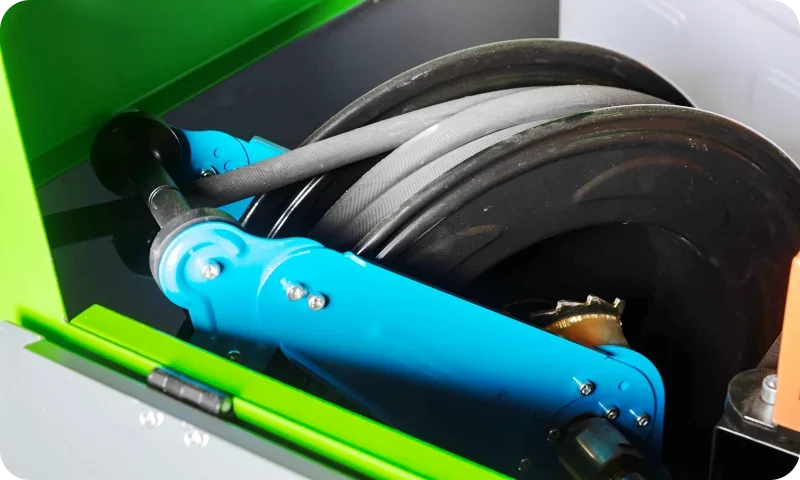

15M HIGH PRESSURE WATER PIPE
Extra-long water pipe design, convenient for flushing over a large area.

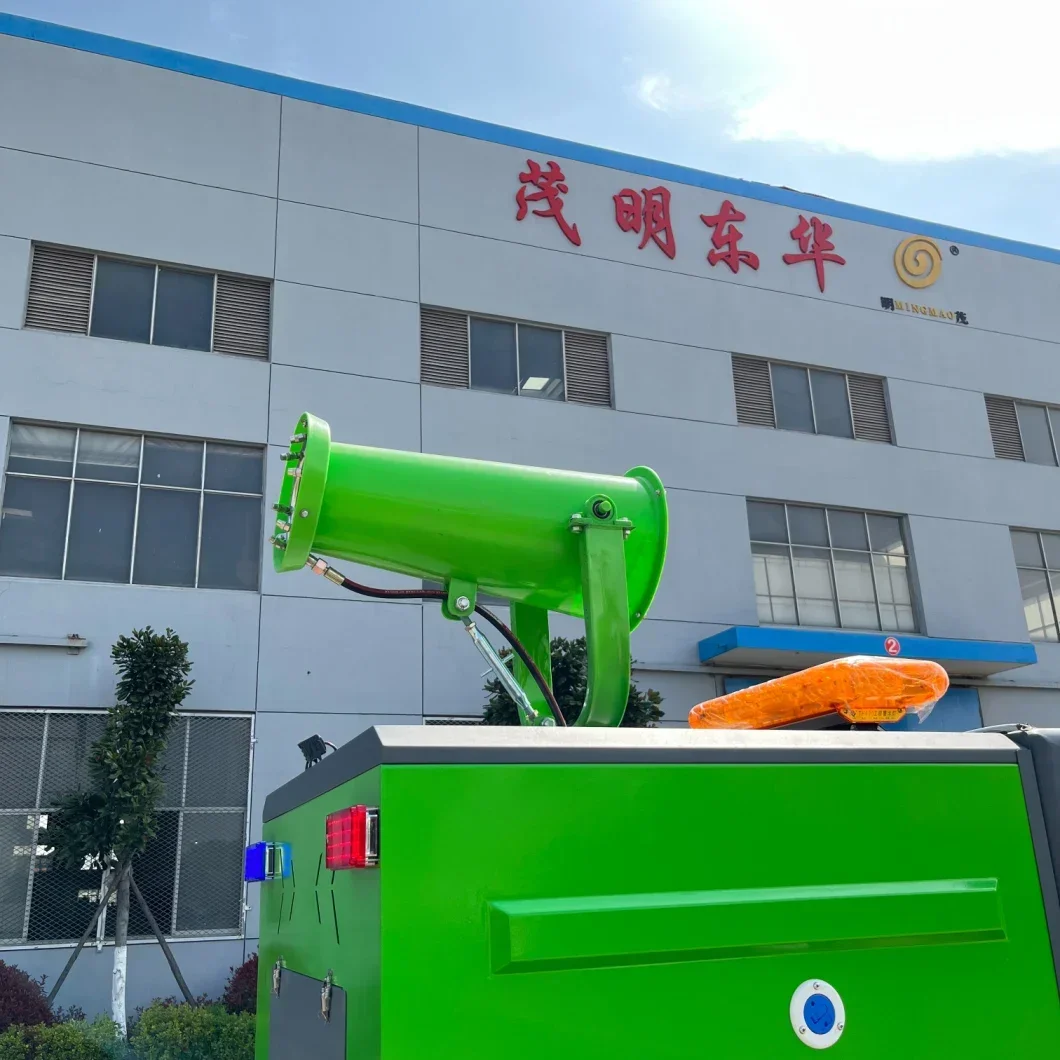

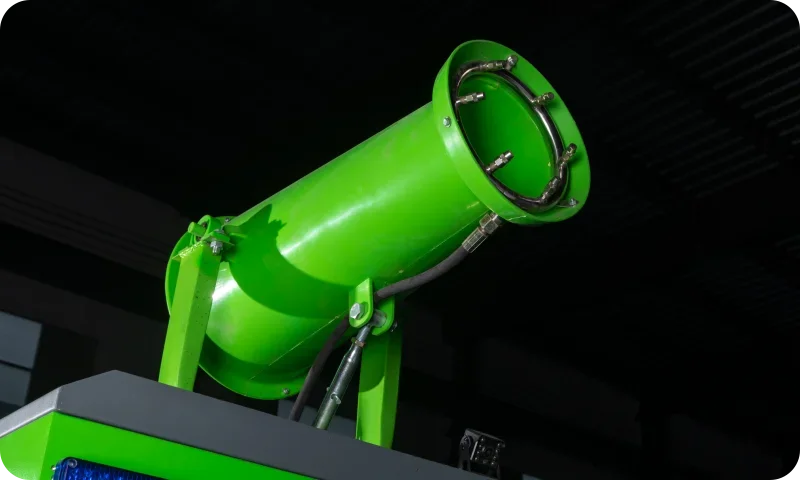

HIGH-PRESSURE FOG GUN
10m effective spraying distance, cleans the air environment by reducing dust, cooling and humidifying, with adjustable wide angle.
HP1050
3W1450
3W1900SE
3WFEVSS
4XS3500
3WT2000A
3WT2000B
4WT2200
4WPET4000
Product Paramenters
Model
|
LB4WT2200
|
Rated Load
|
250 KG
|
||
Product Dimension
|
2700x2100x2100mm
|
Rated Occupant
|
1
|
||
Garbage Container
|
240 L
|
Max Speed
|
8Km/h
|
||
Main Brush Diameter
|
800mm
|
Max Range
|
55 Km
|
||

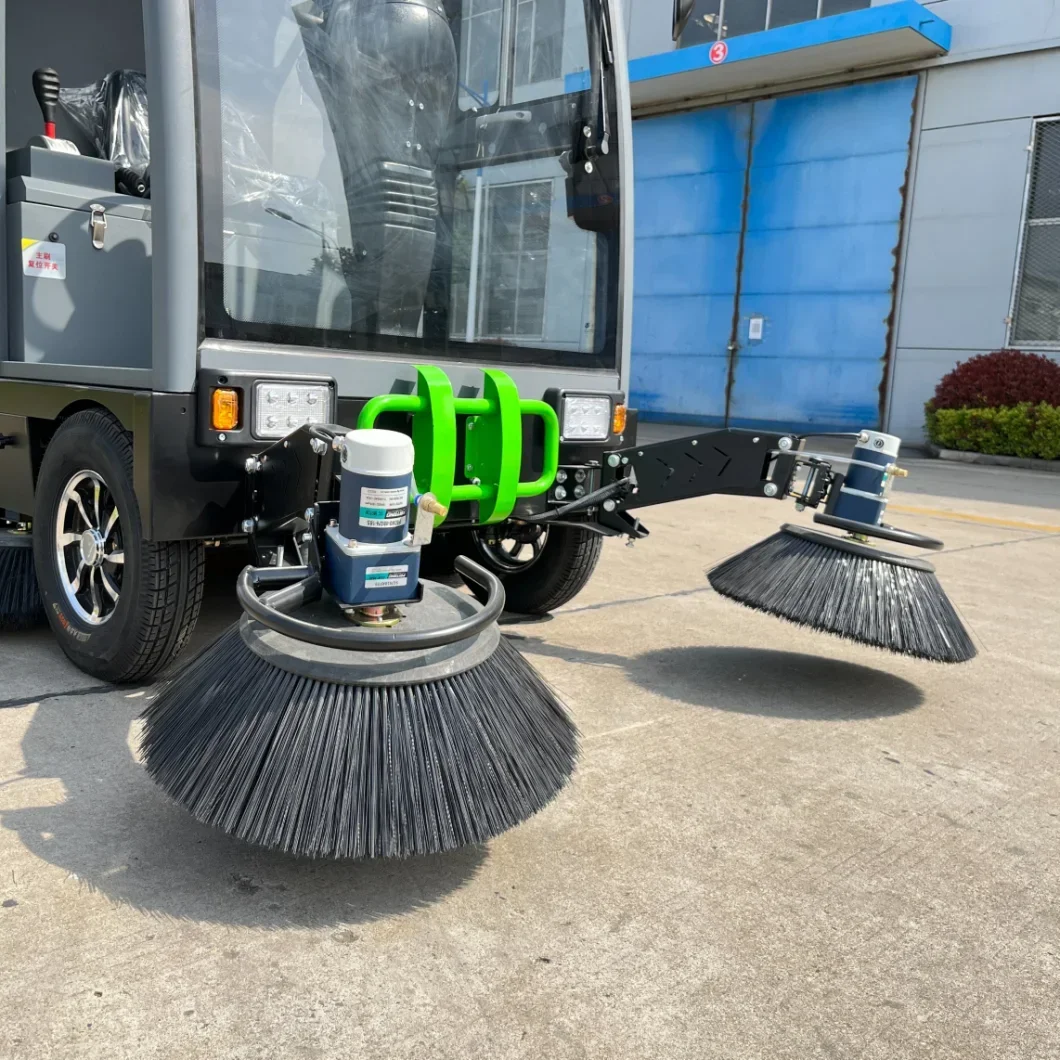

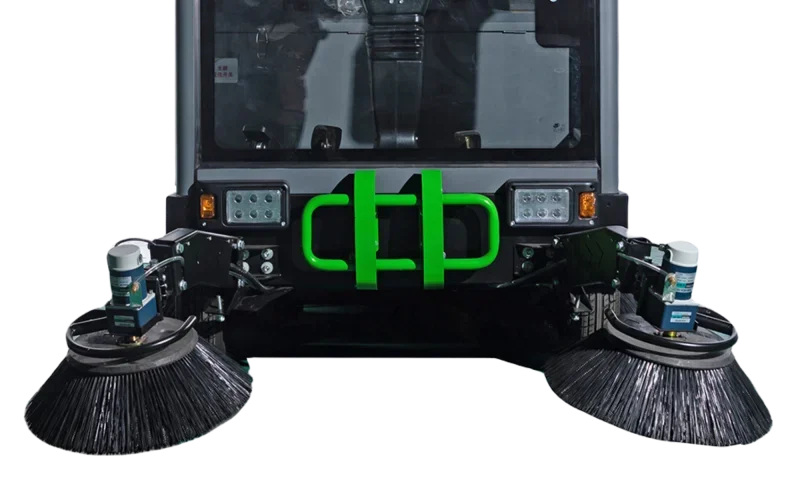

Side Brush Diameter
|
300mm * 2 + 260mm * 2
|
Gradeability
|
25%
|
||
Drive Motor
|
48V 2200W
|
Tyre
|
450-12 Tubless
|
||
Controller
|
2200W
|
Charging Time
|
About 8 hrs
|
||
Battery
|
48V 200Ah
|
Water Tank
|
150 L
|
||
Charger
|
220VAC 15A
|
Sweeping Width
|
< = 2100mm
|
||
Curb Weight
|
1150 KG
|
Working Hours
|
5 - 7 hrs
|
||
Side Brush Motor
|
4 * 100W
|
Fan and Vibrator Power
|
2 *300W 2*50W
|
||
High Pressure Flushing
|
48V 1500W electric pump, 10m hose, 130 Bar pressure, flow quantity 10L/m, continuous working time 45 mins
|
|
|
||
Chassis and Body
|
Heavy-duty and high-strength chassis, the body is made of thickened sheet metal and rotational molding plastic water tank
|
|
|
||
Steering System
|
Steering wheel type
|
|
|
||
Brake Systems
|
Hydraulic brake with high safety and stability
|
|
|
||
Lights&Signals
|
Main headlight + front indicators + brake lights + tail lights + alert lamp
|
|
|
||
Dashboard
|
PP engineering plastic, environmentally friendly
|
|
|
||
Wind Shield
|
Tempered glass with electric wiper
|
|
|
||
Seat
|
Cold foam sponge + high resilience PU leather
|
|
|
||
Rear-view Mirror
|
Broad-view external rearview mirror
|
|
|
||

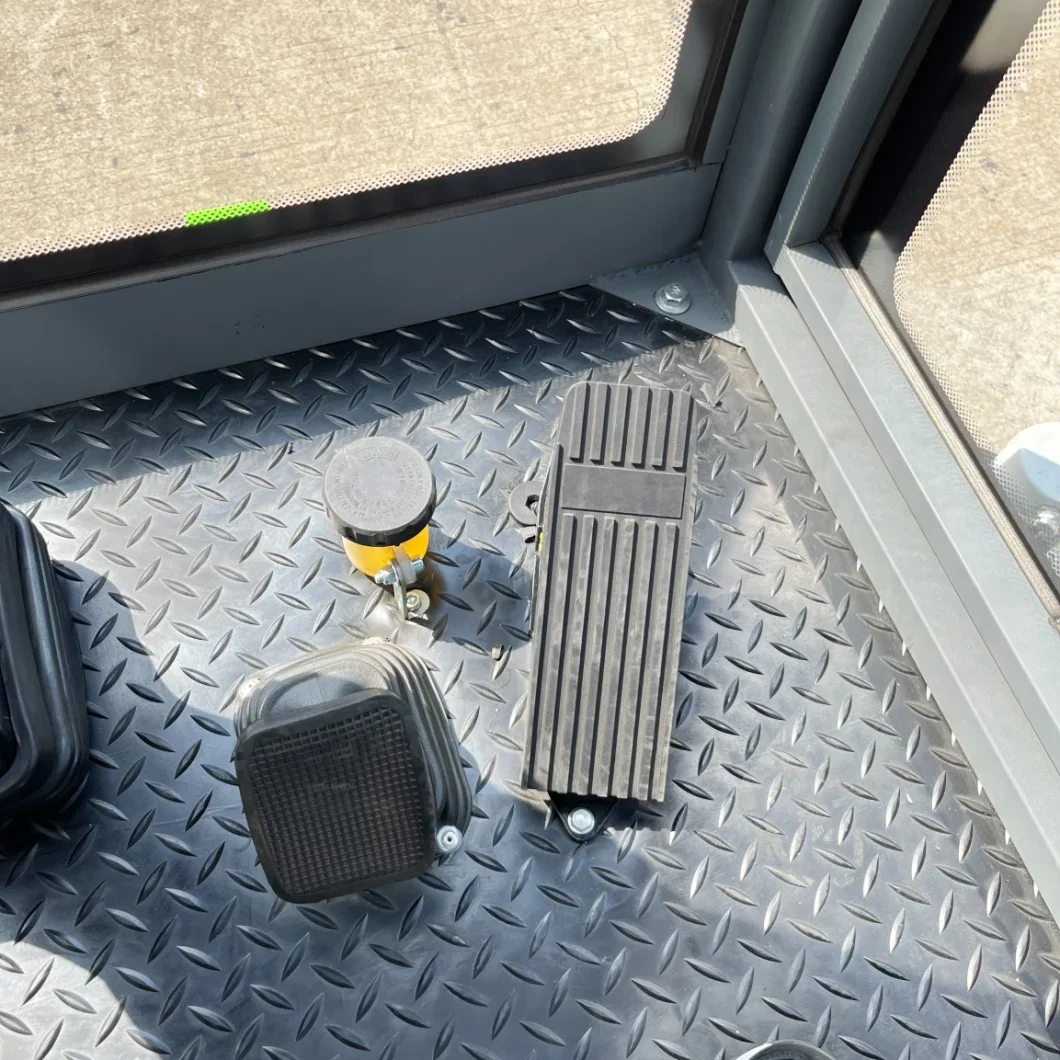

Accelerator
|
Foot pedal type
|
|
|
||
Reverse Camera
|
Yes
|
|
|
||

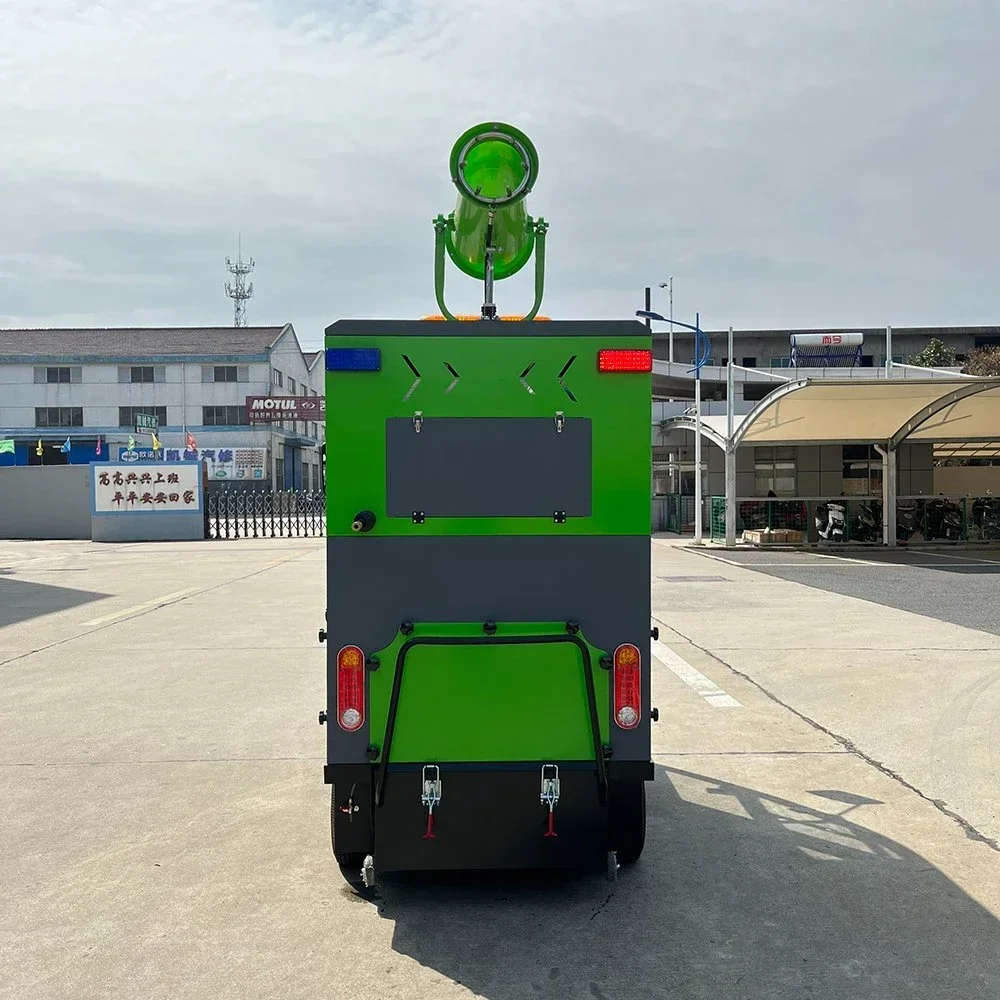

Mist Cannon
|
Optional, for purposes of removing dusts, or disinfection
|
|
|
||
Application Fields
|
This vehicle is widely used in cleaning work in streets, schools, industrial parks, factory areas, large-scale exhibitions,
squares, warehouses, conference centers, parks, air ports, sea ports and other areas. |
|
|
||
Rear-view Mirror
|
Broad-view external rearview mirror
|
|
|
||
Accelerator
|
Foot pedal type
|
|
|
||
Garbage Container
|
The bottom and side linings use galvanized or stainless steel plates with THK ≥1.5mm
|
|
|
||
Vehicle Interior
|
PP engineering plastic, environmentally friendly
|
|
|
||
Tipping
|
Electrically operated hydraulic type
|
|
|
||
Air Conditioner
|
Split heating and cooling air conditioner
|
|
|
||
Application Fields
|
This vehicle is widely used in cleaning work in streets, schools, industrial parks, factory areas, large-scale exhibitions,
squares, warehouses, conference centers, parks, air ports, sea ports and other areas. |
|
|

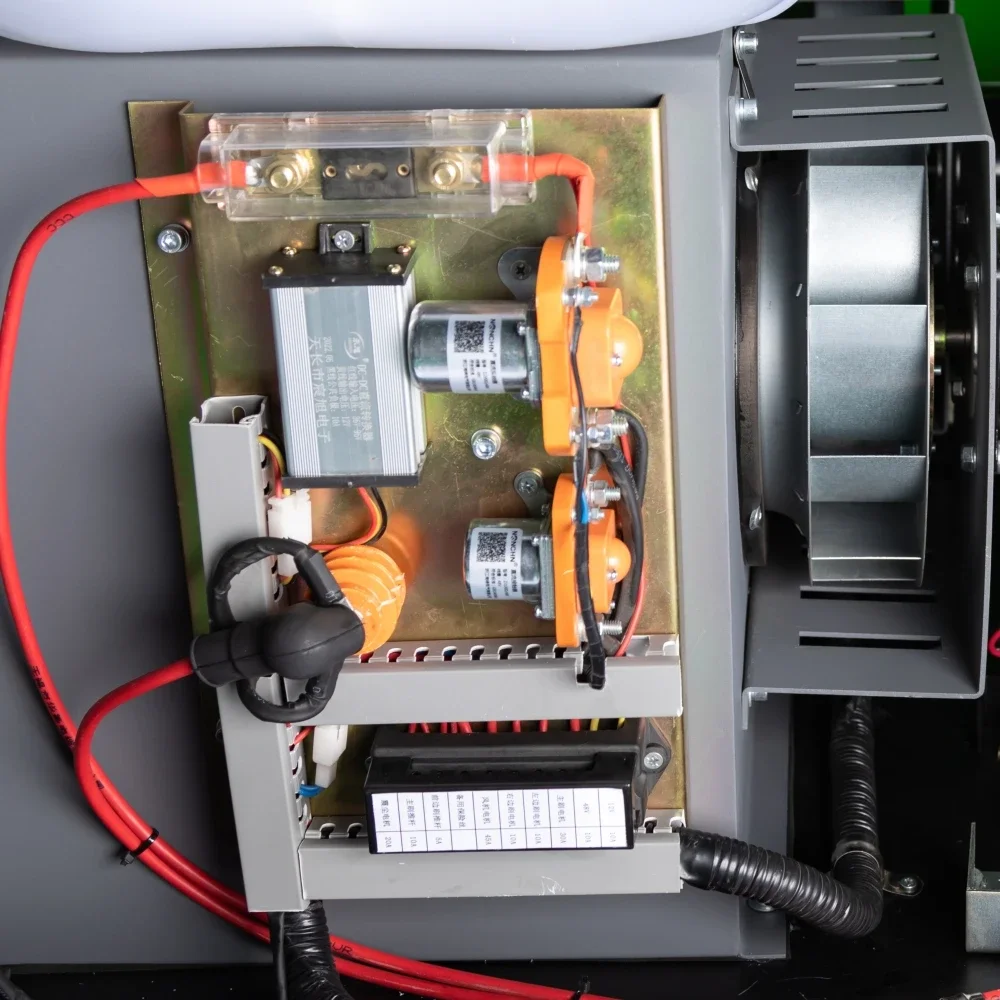

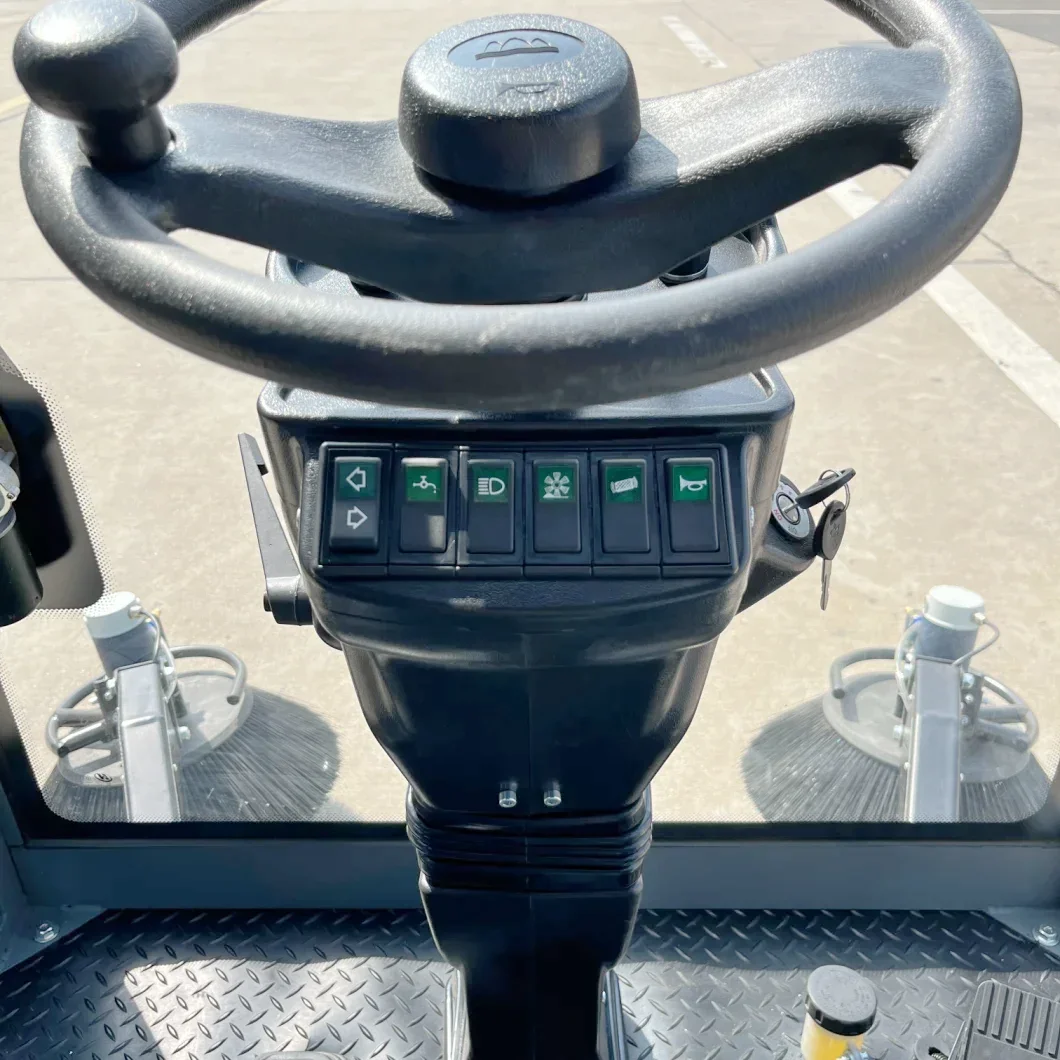

INTEGRATED CONTROL PANEL

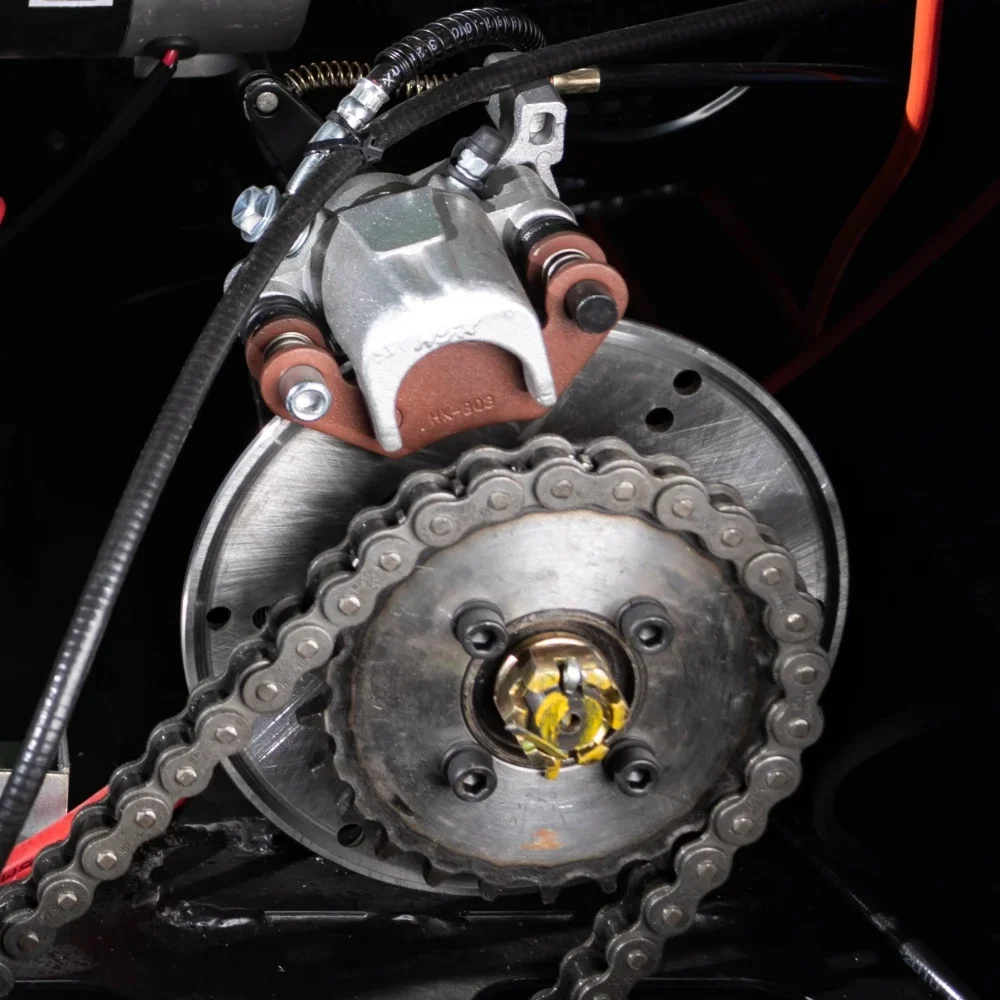

DISC BRAKE

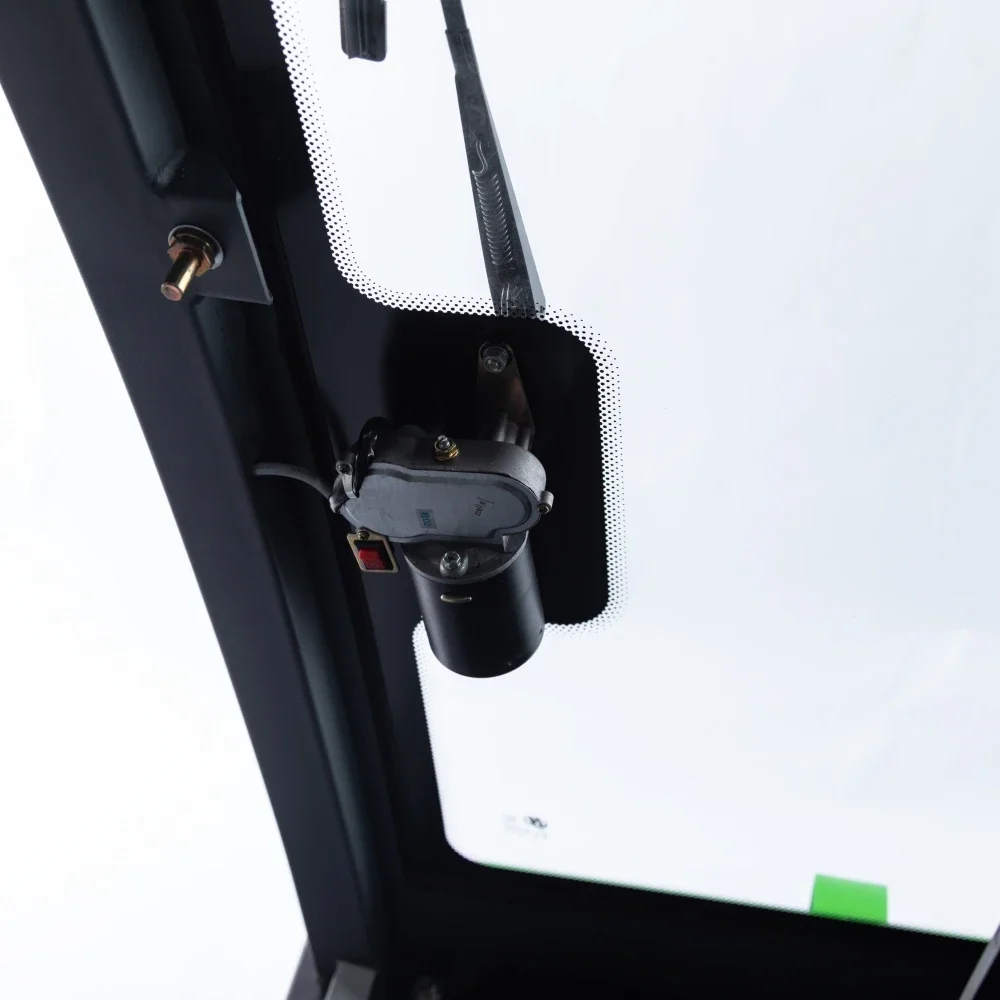

WIPER
CONTROL BUTTON

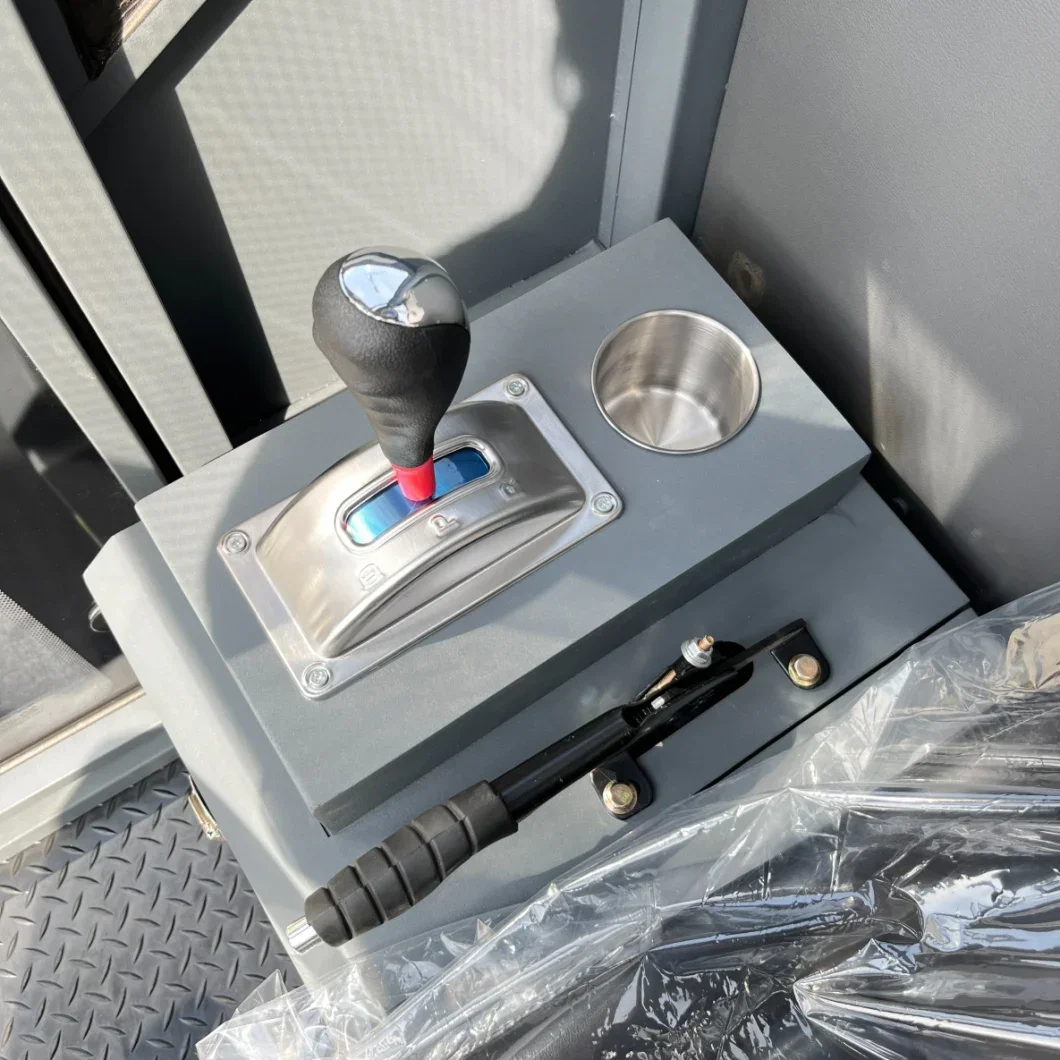

OPERATING LEVER

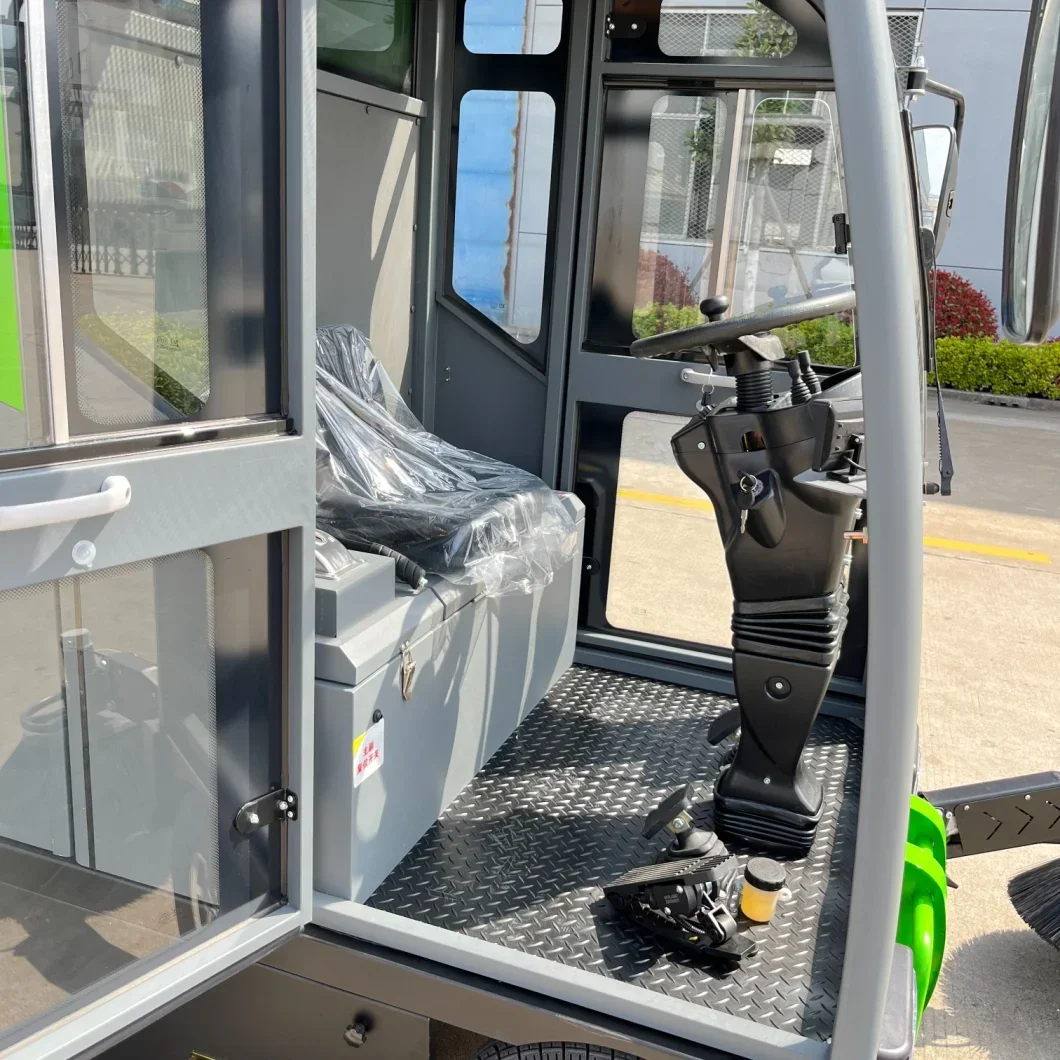

CAB

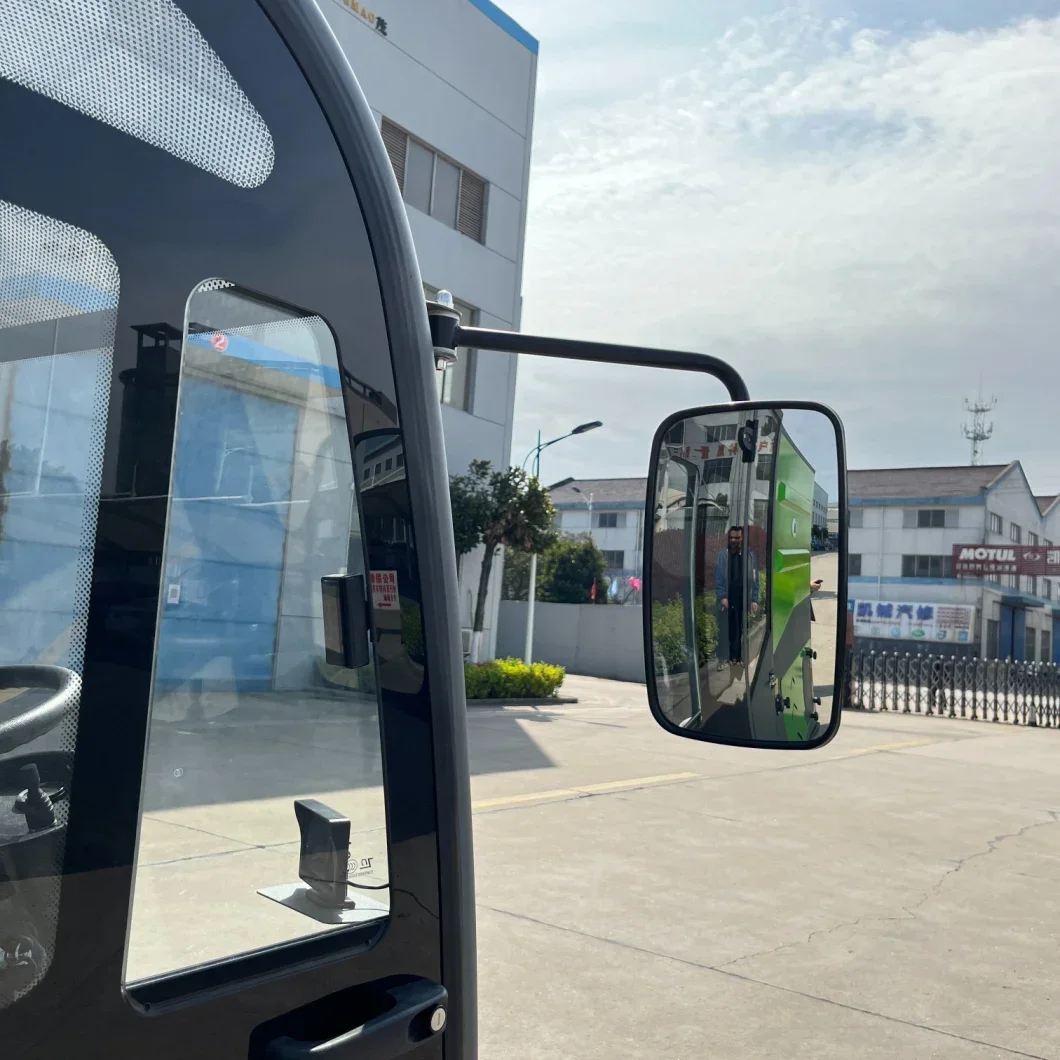

REAR-VIEW MIRROR

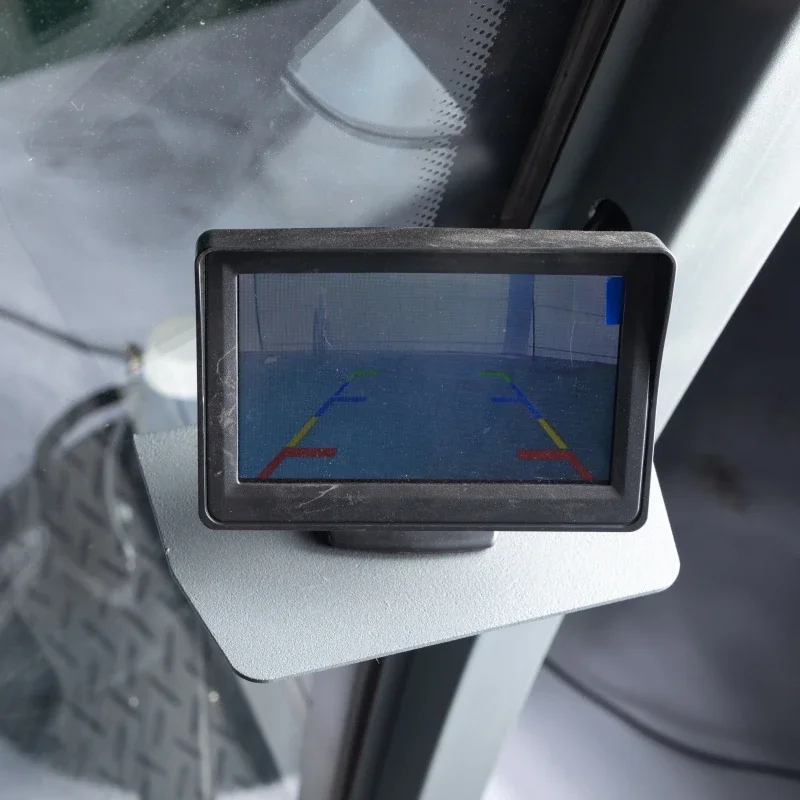

REARVIEW CAMERA
